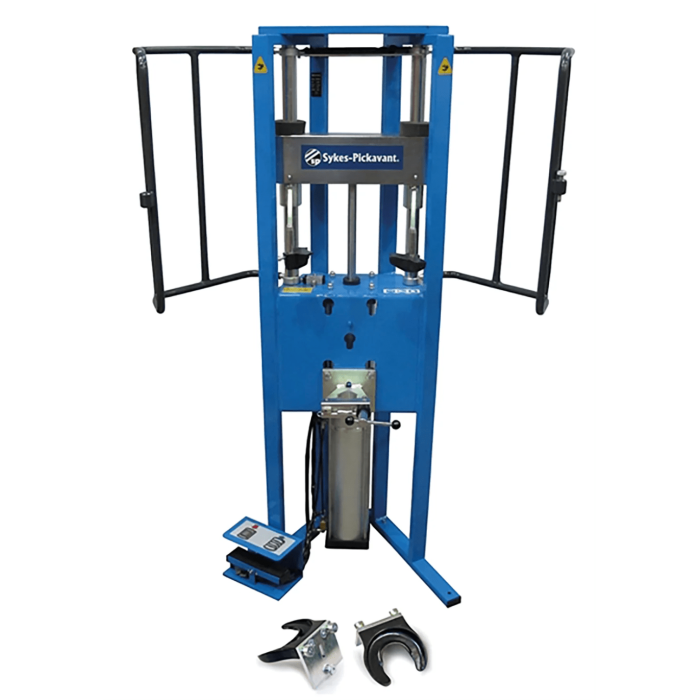

Pneumatic Coil Spring Compressor Workstation with Upper Bracket

Universal piece of equipment for assembling and disassembling struts and coil springs - suitable for Cars, 4WDs and LCV's

  • Automatic jaw levelling pivots to compensate and hold all coil springs including left hand coils
  • Safety switch prevents operation when gates are open
  • Interchangeable jaws / vice to suit different springs
  • Up to 2452kg of force (at 8 bar) at the touch of a pedal
  • Full height steel safety gates
  • Top arms and jaws adjust and lock to secure spring
  • Unique double depth front plate allows safe work on extra long strut assemblies
  • 4 x 10mm floor mounting holes for insurance company compliance
  • Safety cut-out for de-activation of cylinder when safety guard is opened

ALS “ Auto Levelling System - Auto levelling upper arms simplify working on conical and misaligned springs
Brackets System - Front and side spring clamps designed for fast changeover using unique Brackets System
Aluminium Cylinder Can be used on extra-long shock absorbers (e.g. commercials) due to the long (330mm) stroke of the cylinder. Manufactured from light alloy and resin to eliminate risk of corrosion and internal parts failure

Contents:

  • Safety Guards
  • Bracket A: 78 “ 130mm (38481200)
  • Bracket C: 105 - 182mm (38481400)
  • Strut Vice (GO332)
  • Upper Top Mount Bracket (GO338)

Specifications:

  • Dimensions: 1600 x 520 x 300mm
  • Max Working Pressure: 8 bar (116 psi)
  • Compression Force: 2452 kg (24500N)
  • Cylinder Stroke: 330mm
  • CE approved

Fitted with Extra Heavy Duty Pneumatic Cylinder - Ideal for Extra Heavy Duty applications i.e. SUVs, 4WDs etc where full spring compression is required

Also Includes: GO338- Upper Bracket for Spring Compressor

The design is ideal for;

  • Springs with a small number of coils; meaning that one more coil can always be tensioned automatically
  • Simplifying dismantling and assembly operations

The rotatable and fixable mounting plate is provided with a universal hole division. In addition, the holder between the arms can easily be tilted. Suitable for use with Sykes-Pickavant Coil Spring Compressors.
